Google Drive

Google Drive is Google's online file storage and synchronization service.

This connector is read-only: it ships search and read_file. To create, upload, copy, or edit files, use Google Workspace instead.

Authentication types

Google Drive supports two authentication methods:

• OAuth: Create your own Google Cloud OAuth app. You control the app, scopes, and credentials. Each user connects with their Google account. Use this method for production. Google Cloud setup is required.

• Instant OAuth: Use Willow's preconfigured Google app. Setup is faster, but fewer scopes are available. Use this method for testing, not production. No Google Cloud setup is required.

Before you start

You will need:

• A Google account that can create projects in the Google Cloud Console. A personal Gmail account is enough for testing.
• Your Willow Redirect URL (see Create the OAuth client).

If your company uses Google Workspace, your admin may block third-party apps by default. In that case a Workspace super admin has to allow your app before anyone can connect. See Approving the app for your organization.

Order matters

Enable the Google Drive API before you pick scopes. The scope picker only lists scopes for APIs that are already enabled in the project, so if you skip ahead you will not be able to find the Drive scopes.

Drive scopes are restricted

The broad Drive scopes (drive and drive.readonly) are restricted, Google's strictest tier. Publishing an External app with them requires OAuth verification and an annual third-party security assessment (CASA), which is a paid, multi-week process. Read Choosing the right Drive scope before you decide.

Setting up OAuth

1. Create or select a project

Go to https://console.cloud.google.com/ and either create a new project or select an existing one using the project picker in the top bar.

Every step below applies to the selected project, so make sure the right project name is showing before you continue.

2. Enable the Google Drive API

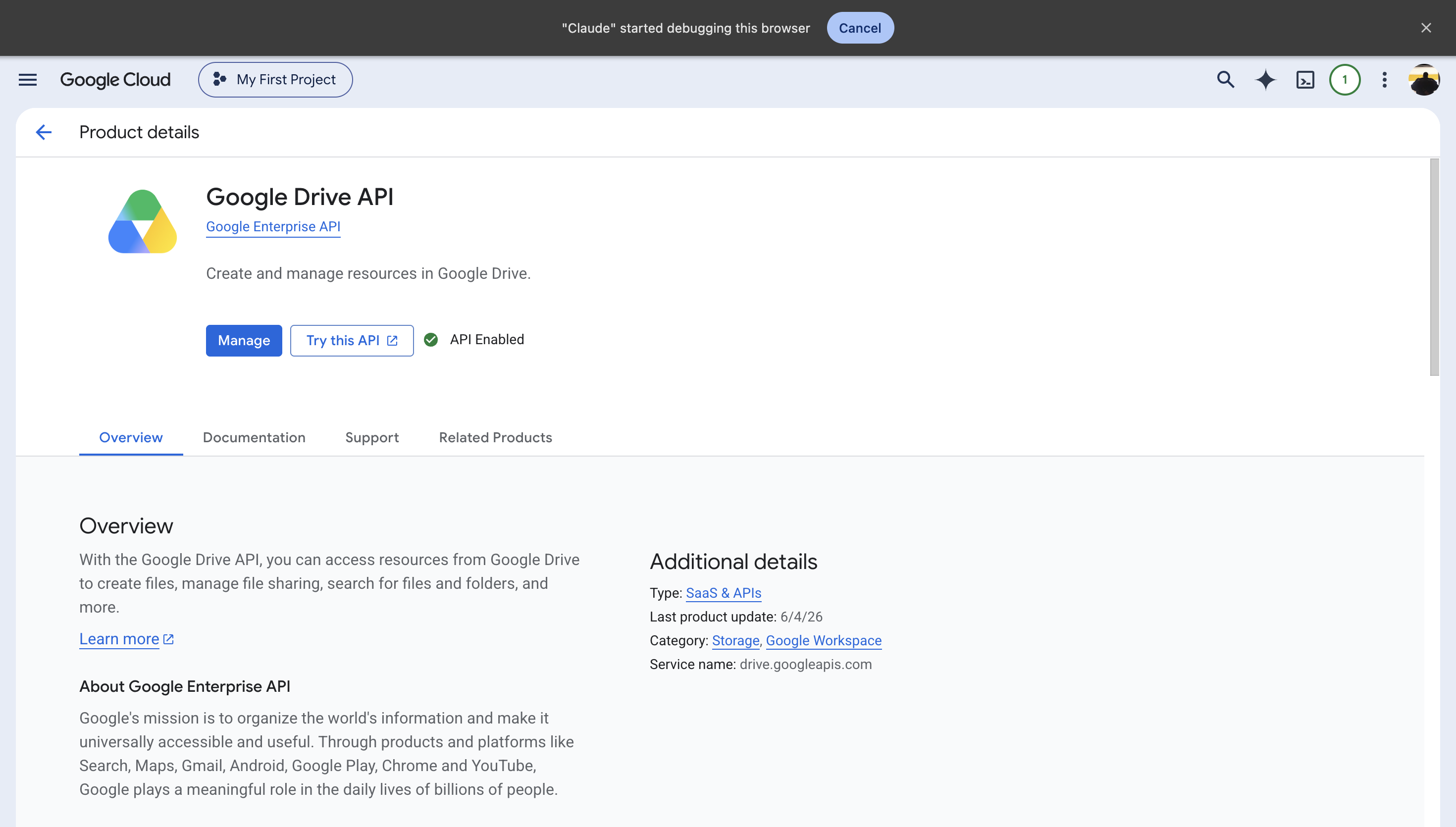

Go to APIs & Services → Library, search for "Google Drive API", open it, and click Enable.

If the API is already turned on, this page shows API Enabled and a Manage button instead of Enable.

Direct link: console.cloud.google.com/apis/library/drive.googleapis.com

3. Configure the consent screen (Branding)

Google now places OAuth settings under Google Auth Platform instead of the old "OAuth consent screen" wizard. Open console.cloud.google.com/auth/branding. You can also go to APIs & Services → OAuth consent screen, which redirects to the same page.

Fill in the required fields:

• App name: What users see on the Google consent screen
• User support email
• Developer contact email

Click Save. Until these fields are filled in, the Audience page will warn that your OAuth configuration is incomplete.

4. Choose your audience

Open Audience (console.cloud.google.com/auth/audience) and set the User type.

Use Internal if you can. Click Make internal. An Internal app can be used only by members of your organization and does not need Google's External app verification.

Google offers Internal only when the Google Cloud project belongs to a Google Cloud Organization. Google Workspace or Cloud Identity provides an organization, but a personal Gmail account does not. If your project has no organization, Make internal is greyed out and External is your only option.

Internal apps may still need admin approval

An Internal app may still need admin approval for restricted Google Workspace services, including Gmail and Drive. See Approving the app for your organization.

If you use External, the app starts in Testing. Only accounts listed under Test users can connect. Add each user under Test users → Add users. Anyone who is not on the list gets an error when they try to connect.

Two things to know about Testing before you rely on it:

• The cap is 100 test users over the entire lifetime of the project. It cannot be reset or changed. Each person counts toward the limit as soon as you add them, even if they never connect.
• The user's authorization and refresh token expire after seven days. Users will have to reconnect every week.

Adding a test user takes effect immediately. Until the account is on the list, Google returns Error 403: access_denied with the message "Access blocked: … has not completed the Google verification process". Although the message mentions verification, it usually means the account is missing from Test users.

Complete Branding before publishing. If the Branding page is incomplete, the Audience page shows "Your app's OAuth configuration is incomplete" and Publish app stays greyed out.

An Internal Drive app avoids the paid security assessment required for a published External app. See Choosing the right Drive scope.

5. Add scopes

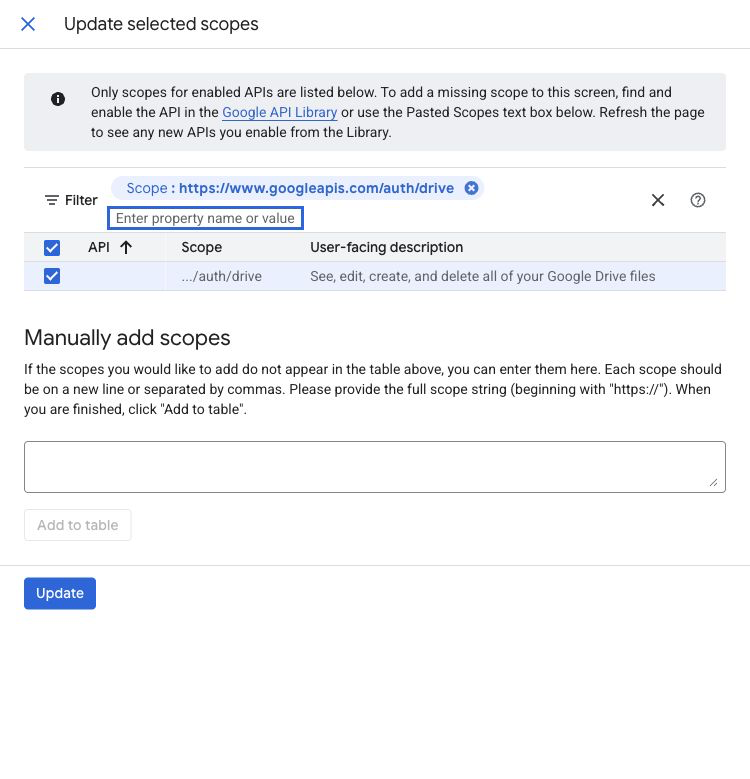

Open Data Access (console.cloud.google.com/auth/scopes) and click Add or remove scopes.

Add the Drive scopes you need:

• https://www.googleapis.com/auth/drive: full access to all files
• https://www.googleapis.com/auth/drive.readonly: read-only access to all files
• https://www.googleapis.com/auth/drive.file: only files the app itself creates or the user explicitly opens

If you do not see them in the list, the Drive API is not enabled yet. Go back to step 2. You can also paste a scope directly into the Manually add scopes box.

Click Update, then Save.

Choosing the right Drive scope

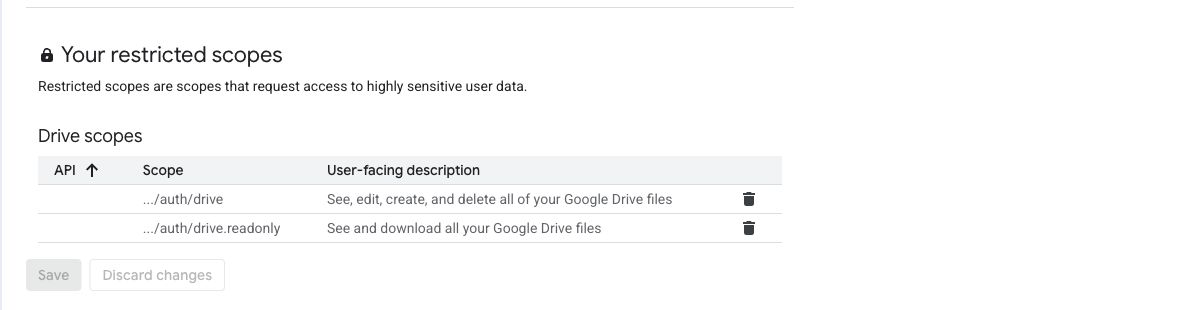

The Data Access page sorts your scopes into three groups. Each group has different requirements for publishing an External app:

Scope	Group	Requirements for publishing an External app
drive.file	Non-sensitive	No additional review
drive	Restricted	OAuth verification + annual CASA security assessment
drive.readonly	Restricted	OAuth verification + annual CASA security assessment

Three ways to avoid the assessment:

• Use drive.file if it covers your use case. It gives access to files the user picks or the app creates, which is enough for many workflows and stays non-sensitive.
• Stay in Testing while you evaluate. An External app in Testing can request drive.readonly. Verification and CASA are required when you publish, not while you test. Each test user sees a "Google hasn't verified this app" warning and must click Continue.
• Keep the app Internal. Internal apps do not need External app verification or CASA. Your Workspace admin may still need to approve high-risk Drive scopes. See Approving the app for your organization.

Check the groups on the Data Access page after you save. Google may change how it classifies scopes, and this page shows the current requirements for your project.

6. Create the OAuth client

Open Clients (console.cloud.google.com/auth/clients) and click Create client.

1. Set Application type to Web application
2. Give the client a name
3. Under Authorized redirect URIs, click Add URI and add your Willow redirect URL:
   • For SaaS deployments: https://{org}.mcp-s.com/{org}/api/auth/callback
   • For On-Premise deployments: {connectUrl}/{org}/api/auth/callback
4. Click Create
5. Copy the Client ID and Client Secret

The redirect URI must match exactly, including https://, and must not have a trailing slash. A mismatch produces Error 400: redirect_uri_mismatch when you connect.

7. Finish in Willow

Open your Google connector in Willow and go to the Setup tab.

1. Under Authentication, select OAuth to use your own Client ID and Client Secret.
2. Paste the Client ID and Client Secret
3. Confirm the Redirect URL shown here exactly matches the URI you registered in step 6
4. Under Scopes, click Add and select the same scopes you configured in step 5
5. Click Save Changes

Selecting a scope in Willow that you did not add in Google Cloud will fail at connect time, so keep the two lists identical.

One OAuth client can serve several connectors

Every connector in a Willow organization shares the same Redirect URL, so one Google OAuth client works for all of them. You do not need one client per connector. Paste the same Client ID and Secret into each connector, then select only the scopes it needs.

Select the narrowest scopes offered by the connector that meet your needs.

8. Authorize the connection

Click Check connection. It stays disabled until the credentials are saved.

Willow opens Google's consent window. It also shows an Authenticate your MCP dialog with the authorization URL and an Authenticate button in case your browser blocks the window. Complete the Google consent steps, then click I've authenticated.

"Google hasn't verified this app"

An External app that requests sensitive or restricted scopes may show an unverified-app warning. If you are testing your own app, follow the available prompts to continue to consent. Publishing the app does not by itself complete verification.

If the consent window does not appear, use the Authenticate button in the dialog.

Test a read-only tool

To test the connection, go to the Tools tab, open the row menu for a read-only tool, and choose Test Tool → Run test. A successful run returns data from Google as JSON.

Use an existing resource that the authenticated account can access. A 401 response indicates an authentication problem; a 403 or 404 can also indicate missing permissions or an inaccessible resource, so an error alone does not confirm a working connection.

Check Guards if a response is blocked

If a tool returns Tool blocked by organization's guardrails, check the matching Willow Guard. The response was blocked by a Guard; changing OAuth scopes will not fix that block.

Approving the app for your organization

Google Workspace admins can restrict which third-party apps may access organization data. When this restriction is on, users may see an access-blocked message naming their Workspace admin or an admin-policy error, even when the OAuth setup is correct.

A Workspace super admin fixes this in the Admin console. From the Admin console, go to Menu → Security → Access and data control → API controls, then click Manage App Access.

To add an app that is not listed yet:

1. Click Configure new app
2. Enter the app name or the Client ID from step 6, then click Search
3. Select the app and click Continue
4. Under Access to Google data, choose Specific Google data and allow the scopes your connector needs, including any required Google Sign-in scopes. Choose Trusted only if your organization intends to allow the app to request all Google services, including restricted services.
5. Click Continue, then Finish

To change an app that is already listed, point to it and click Change access. To update several apps, select them and click Change access at the top. Use Select org units → Include organizations to choose which parts of your organization receive the change. Leave the top-level organization selected to apply it to everyone. Then confirm with Change access.

The access levels are Trusted, Limited, Specific Google data, and Blocked. Specific Google data permits the scopes you approve, including scopes for restricted services. Trusted permits access across all services.

Internal apps also need approval if your organization restricts unconfigured third-party apps. See Google's guide, Control which third-party & internal apps access Google Workspace data.

Your organization may apply stricter rules to Drive than to other Google services. In the Admin console, also check API controls → Google Services.

Publishing and verification

If your app is Internal, you do not need External app verification, CASA, or a test-user list, and authorizations do not expire after seven days. This is the recommended option for Drive. Confirm that your Workspace admin allows the restricted Drive scopes for Internal apps.

An External app starts in Testing. Only listed test users can connect, and refresh tokens expire after seven days. To publish an app that uses drive or drive.readonly, complete OAuth verification and an annual CASA security assessment. Start the process from the Verification Center. Using drive.file avoids these requirements.

Troubleshooting

Symptom	Cause
Required scopes missing from the scope picker	A required API is not enabled in the selected project. See step 2.
Error 400: redirect_uri_mismatch	The Redirect URI in the OAuth client does not exactly match Willow's Redirect URL.
org_internal error	The app is Internal, but the user does not belong to the organization that owns the Google Cloud project.
Error 403: access_denied: "Access blocked: <domain> has not completed the Google verification process… can only be accessed by developer-approved testers"	The app is External and in Testing, but the Google account is not in Test users. Add the account on the Audience page. This is a test-user error, not a Workspace admin approval error.
"Access blocked" that names your Workspace admin, or persists for an account already listed under Test users	Workspace admin has not trusted the app. See Approving the app for your organization.
Users have to reconnect every 7 days	App is External and still in Testing. Authorizations expire seven days after consent.
Make internal is greyed out	The project does not belong to a Google Cloud Organization
Publish app is greyed out, with "Your app's OAuth configuration is incomplete"	Branding is unfinished. Fill in the Branding page first.
Tool call returns {"error":{"type":"Tool Error","message":"Tool blocked by organization's guardrails"}}	A Willow Guard blocked the response. Check Guards for the matching rule and result.
